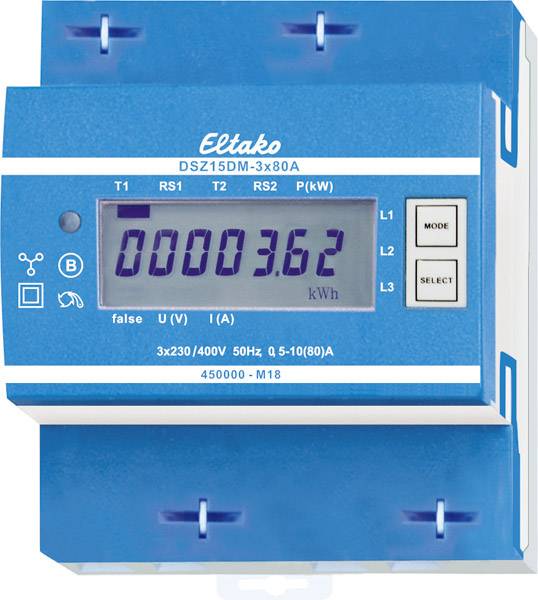

Eltako DSZ15DM-3x80A MID Electricity meter (3-phase) Digital 80 A MID-approved: Yes 1 pc(s)
Only calibrated meters are approved for electricity accounting according to §25 of the German calibration law. Non-compliance is an administrative offense according to §19. M-Bus three-phase meter. Maximum current 3x80A, standby loss of only 0.5 watts per path. Series installation device for mounting on DIN-EN 60715 TH35 mounting rail. 4 division units = 70mm wide, 58mm deep. Accuracy class B (1%). With M-Bus interface. The direct measuring three-phase meter measures the active energy based on the currents flowing between the inputs and outputs. The own consumption of only a maximum of 0.5 watt active power per path is not measured and not displayed. 1, 2 or 3 external conductors with currents up to 80A can be connected. The starting current is 4OmA. The N connector must be present. The ...
Eltako4010312501726
Price: £295.00 from Conrad Electronic
| Stockist | Price | |
|---|---|---|
| £295.00 | Visit Store |
Related Products
Eltako DSZ14DRS-3x80A MID Electricity meter (3-phase) Digital 80 A MID-approved: Yes 1 pc(s)
Only calibrated meters are approved for electricity accounting according to §25 of the German calibration law. Non-compliance is an administrative offense according to §19. RS485-Bus radio three-phase meter. Maximum current 3x80A, standby loss only...

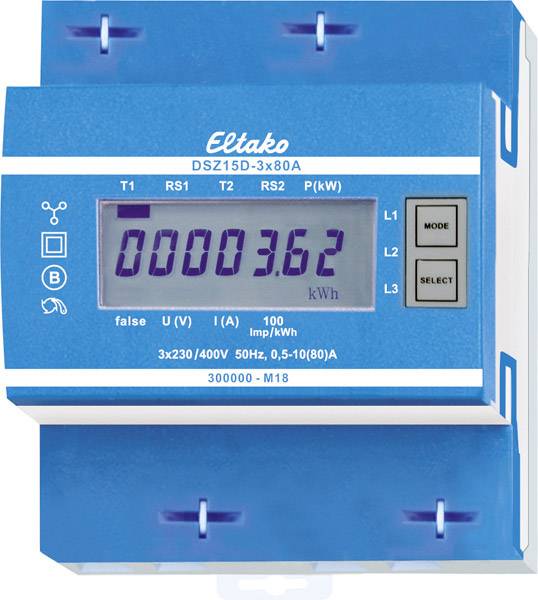

Eltako DSZ15D-3x80A MID Electricity meter (3-phase) Digital 80 A MID-approved: Yes 1 pc(s)
