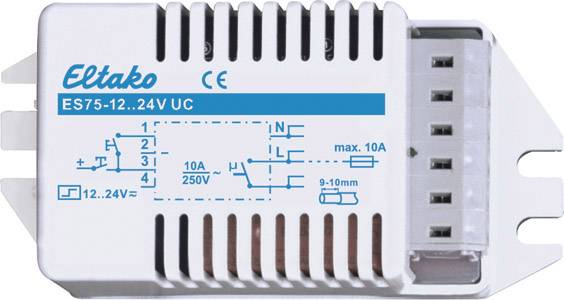

Impulse changeover switch Fixed Eltako ES75-12..24V UC 1 maker 230 V 10 A 500 W 1 pc(s)
Impulse switch for lamps 12..24V UC. 1 NO contact non-potential-free 10A/250V AC. Stand-by loss only 1Watt. For panel mounting. 85mm long, 40mm wide, 28mm deep. With integrated transformer for galvanic isolation between control circuit and circuit, in order to fulfill the requirements for safety extra-low voltage SELV according to EN 60669-2-2. From production week 18/18 the safety requirement 2x MOPP according to EN 60601-1 is also fulfilled. Control with the internal voltage or an external control voltage from 12 to 24V UC, control current 10mA at 24V. Permanent power supply 230V. A fuse with a maximum of 10 A is required. For incandescent and halogen lamp load up to 500W and fluorescent lamps with KVG in DUO-circuit up to 1000VA. Fluorescent lamps with KVG compensated in parallel 300VA....
Eltako4010312101063
Price: £55.99 from Conrad Electronic
| Stockist | Price | |
|---|---|---|
| £55.99 | Visit Store |
