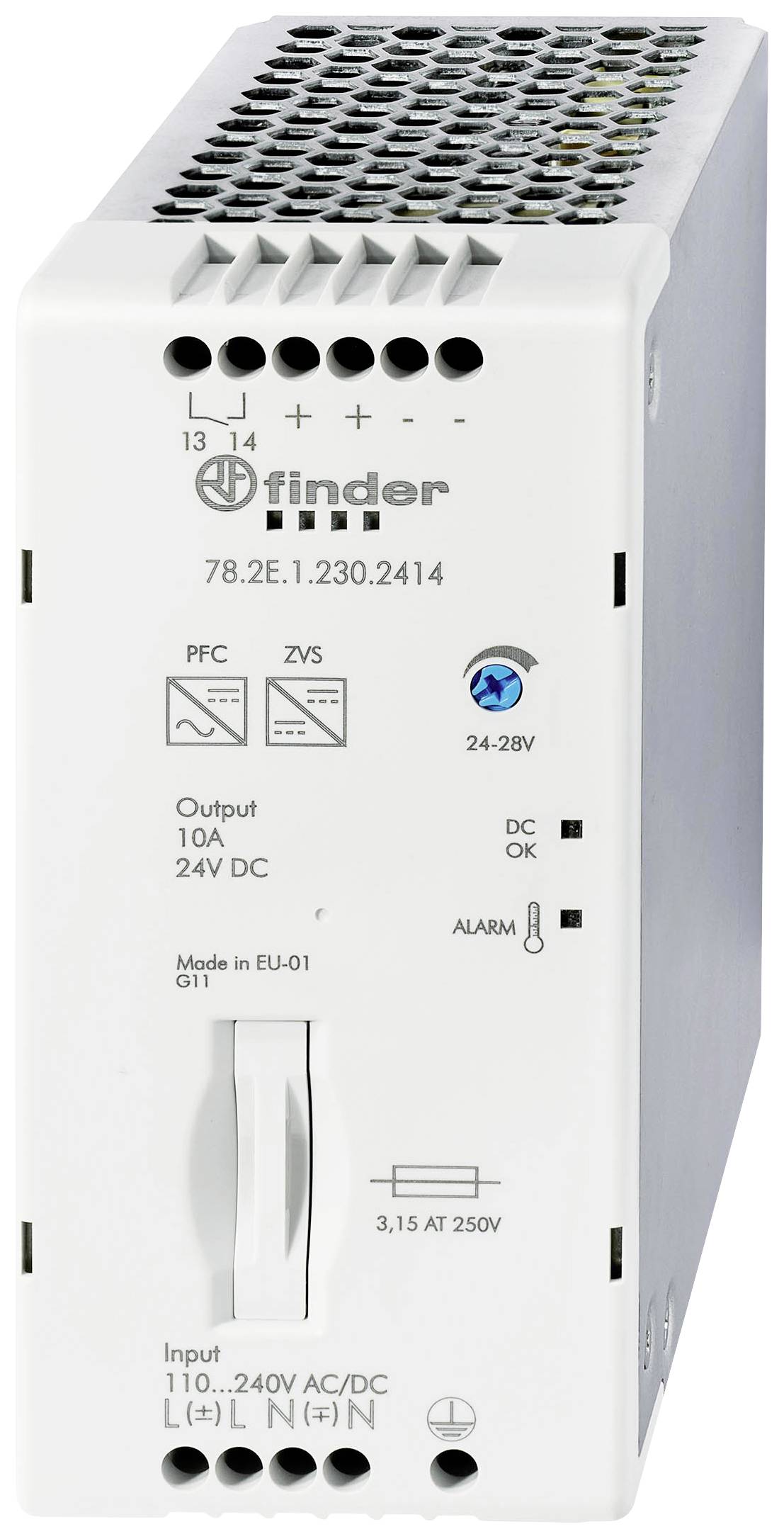

Finder 78.2E.1.230.2414 Rail mounted PSU (DIN) 24 V DC 10.8 A 240 W Content 1 pc(s)
Highly efficient switched-mode power supply for input voltages of 110-240 V AC/DC, output 240 W at 24 V DC, output voltage range adjustable from 24-28 V DC. Output contact: Positive logic, rated output current 10 A, maximum peak current 25 A - 5 ms, internal thermal protection, short circuit protection at the output. 2-stage power supply with active PFC: After switching off the power supply unit - reset by reducing the supply voltage. The input fuse can be replaced. Width 60 mm, for supporting rail 35 mm (EN 60715).This text is machine translated.
Finder8012823402833
Price: £309.00 from Conrad Electronic
| Stockist | Price | |
|---|---|---|
| £309.00 | Visit Store |
