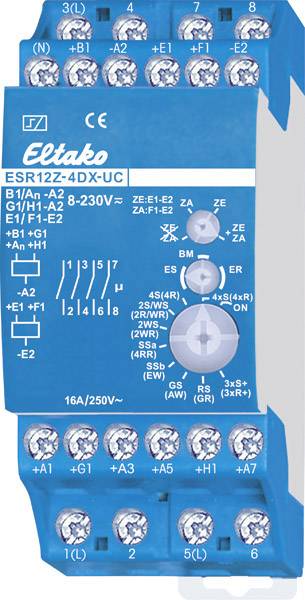

Impulse changeover switch DIN rail Eltako ESR12Z-4DX-UC 4 makers 230 V 8 A 2000 W 1 pc(s)
4-way surge current relay, also for central and group control. With 4 independant contacts. Standby loss only 0.03 to 0.4 watts. To do this, simply connect the N conductor to the clamp (N) and the external conductors to 1(L), 3(L) or 5(L). This results in an additional standby consumption of only 0.1 watts. If the contact is used to control switching devices that do not switch themselves at zero crossing, (N) should not be connected, as the additional closing delay otherwise causes the opposite. Local universal control voltage 8..230V UC. With additional universal voltage control inputs centrally on and off for 8..230V UC, electrically isolated from the local control inputs. With additional group control inputs on and off for 8..230V UC. Same potential as local control inputs. Groups of th...
Eltako4010312108130
Price: £93.99 from Conrad Electronic
| Stockist | Price | |
|---|---|---|
| £93.99 | Visit Store |
