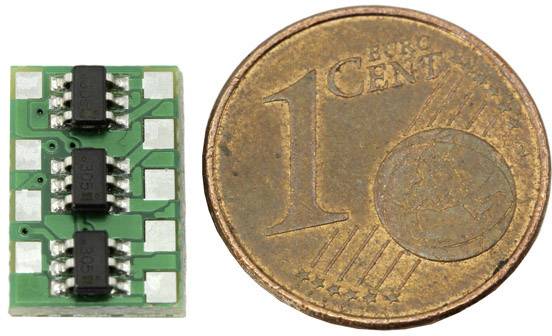

Sol Expert 19600 Lighting module 2.7 - 5 V (L x W x H) 12 x 7.8 x 3.1 mm
This MircoALF has been designed for all those who want to switch the indicators, the driving light, warning light and even two additional rotating beacons comfortably and in the smallest of spaces (e.g. in a semi-trailer). All functions are switched via a proportional channel of the receiver. In addition, several LEDs or other consumers can be switched by the high-quality end stages with a load capacity of up to 500mA.Despite the small dimensions, the soldering pads are sufficiently dimensioned so that the cables can be soldered on easily. The LEDs to be connected must be equipped with a series resistor for current limitation. However, you can also use our 3.7 volt LEDs at any time (such as LR-K, etc.), which have already integrated the required resistance in the cable. Thus, the installa...
Sol Expert4037373196005
Price: £12.99 from Conrad Electronic
| Stockist | Price | |
|---|---|---|
| £12.99 | Visit Store |
Related Products

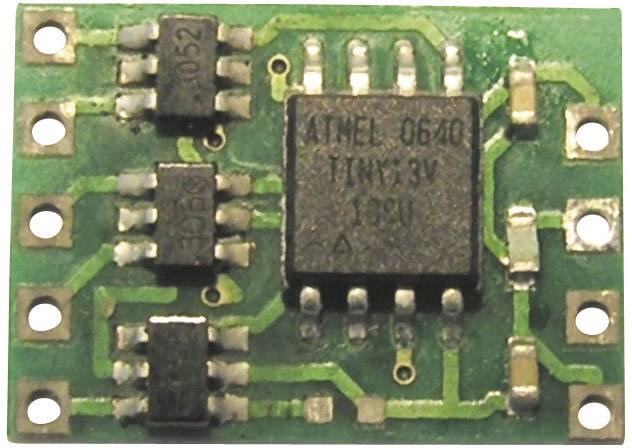

Sol Expert ALF Lighting module 2.7 - 5.5 V DC (L x W x H) 16 x 12 x 2.5 mm
The device serves all major lighting functions with only one channel (foras. Left Cross stick), the FM radio control system. Turned on will be: light, turn signal (l / r), hazard lights, flashing light, running light. Imax per switching channel: 500...

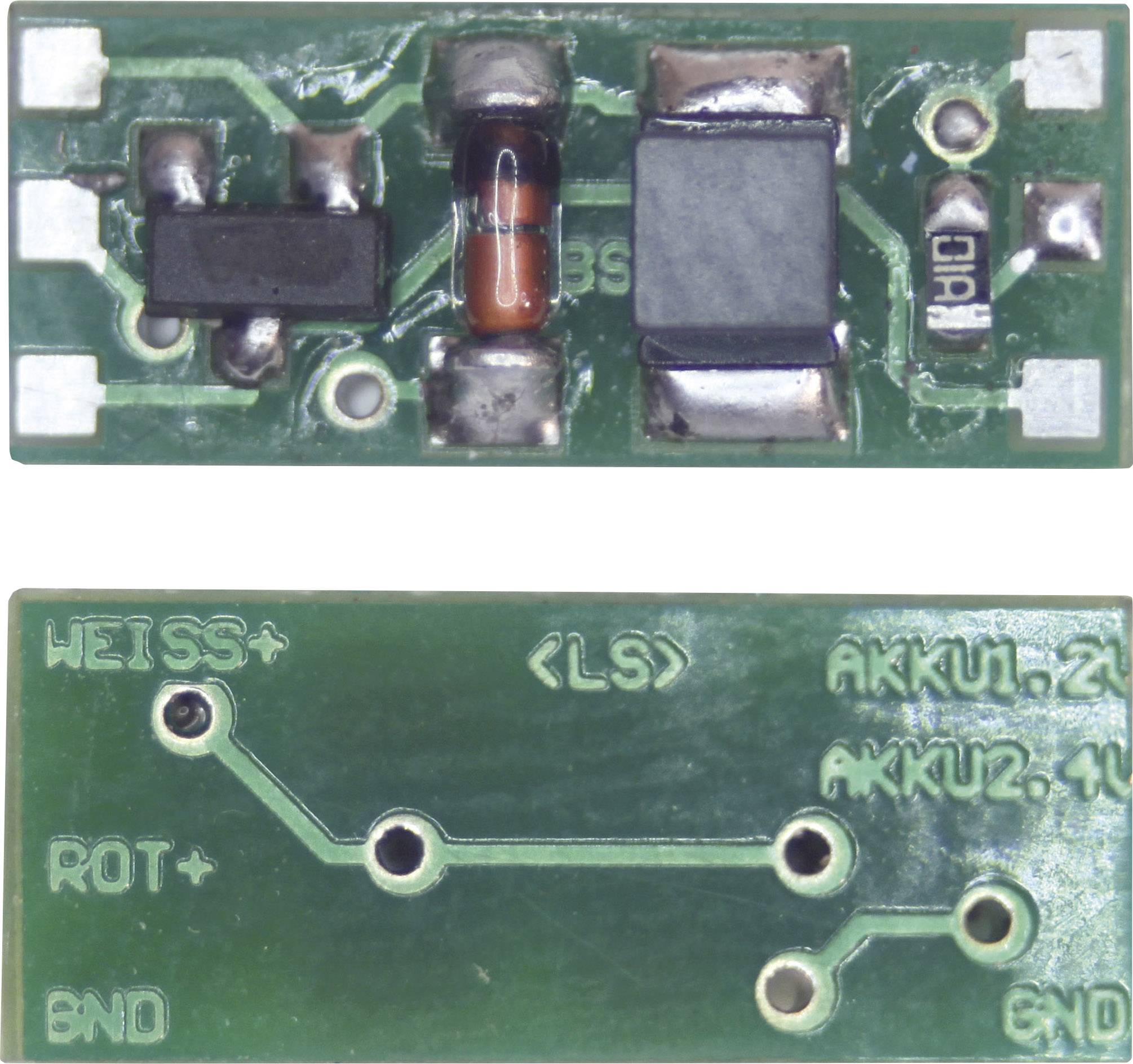

Sol Expert 90444 CarSystem lighting kit 1 - 3 V (L x W x H) 14 x 6 x 3.5 mm
In order to be able to operate white LEDs in wired vehicles despite only two NiMH batteries, this small circuit makes sense. With it the complete vehicle lighting can be realized by means of white and red LED. No further series resistors are required....
Sol Expert ZRS Brass Micro cogwheel set Module 0.2 1 Set
Consists of: 1x gear wheel Z8 with 0.8 mm drill suitable on M 600-M 700; 2x gear wheel Z22 height of 1 mm with 1 mm of drill; 2x gear wheel Z9 height of 2 mm with 1 mm of drill All components: Module 0.2 brass
